Product Description

Model Number: 3532 Aluminum Nitride Ceramic Bracket

Material quality: aluminum nitride

Surface technology: nickel palladium gold

Lens type: square cup

Dam height: T1=0.4mm T2=0.15mm (tolerance ±0.05mm)

Finished product thickness: 1.2mm (tolerance ±0.15mm)

Remarks: T2 part is slotted to prevent glue overflow during packaging.

Customizable drawing production

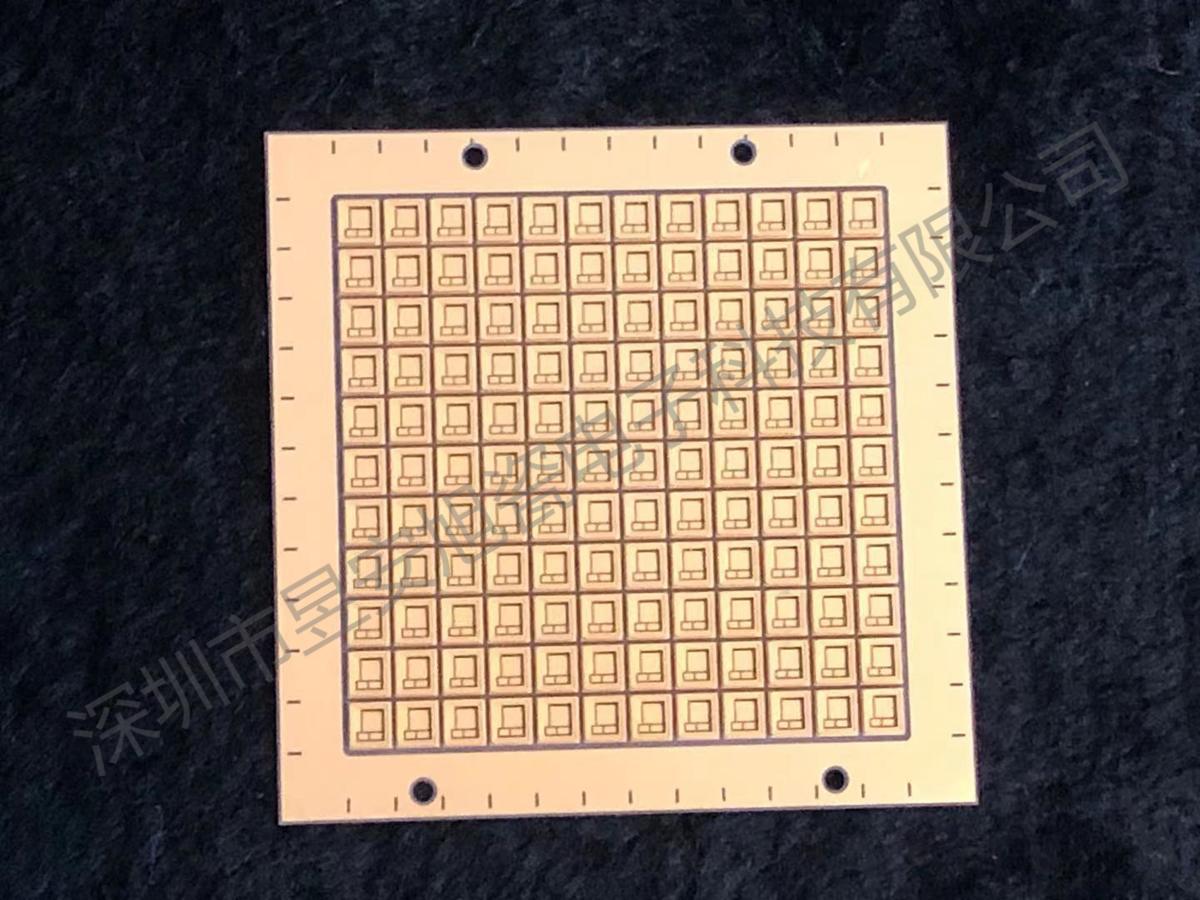

3532 dam slotted bracket-front imposition

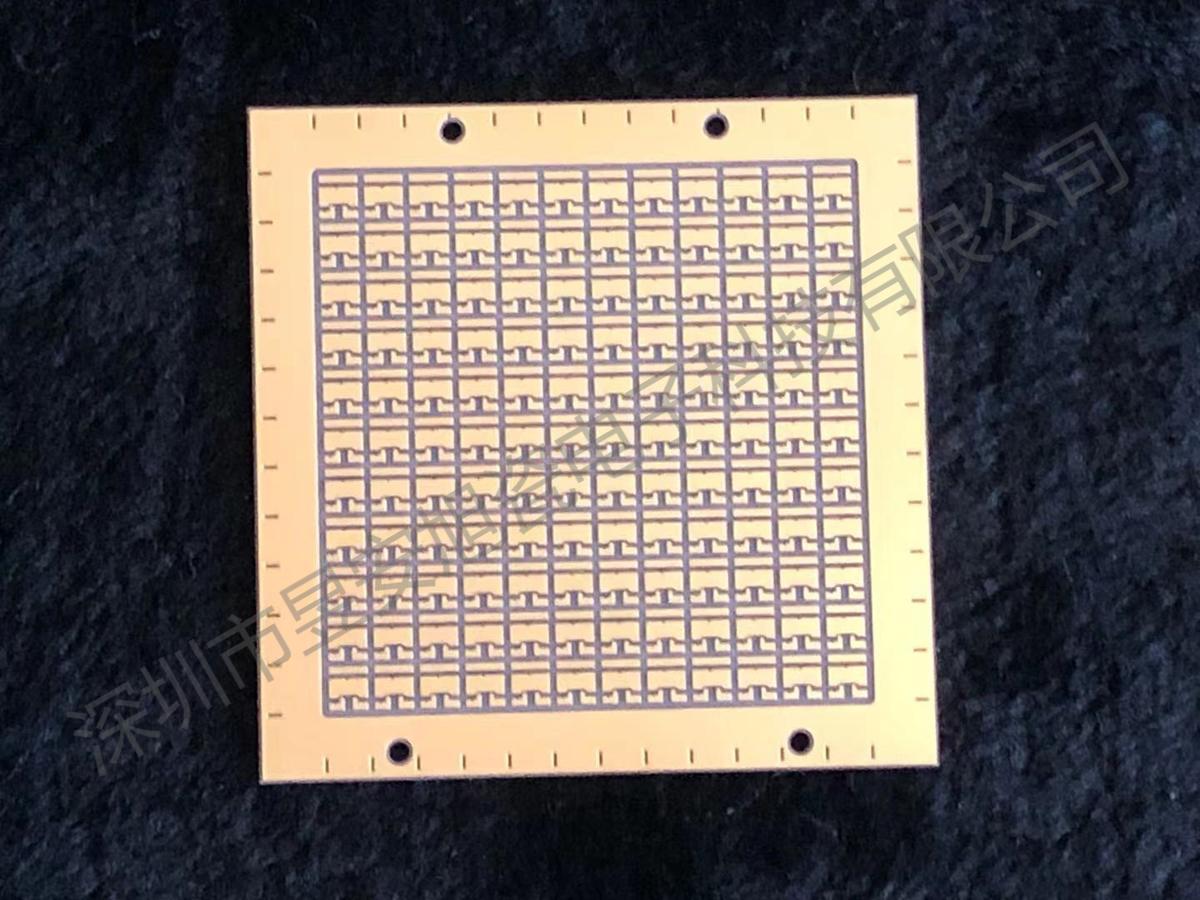

3532 dam slotted bracket-back imposition

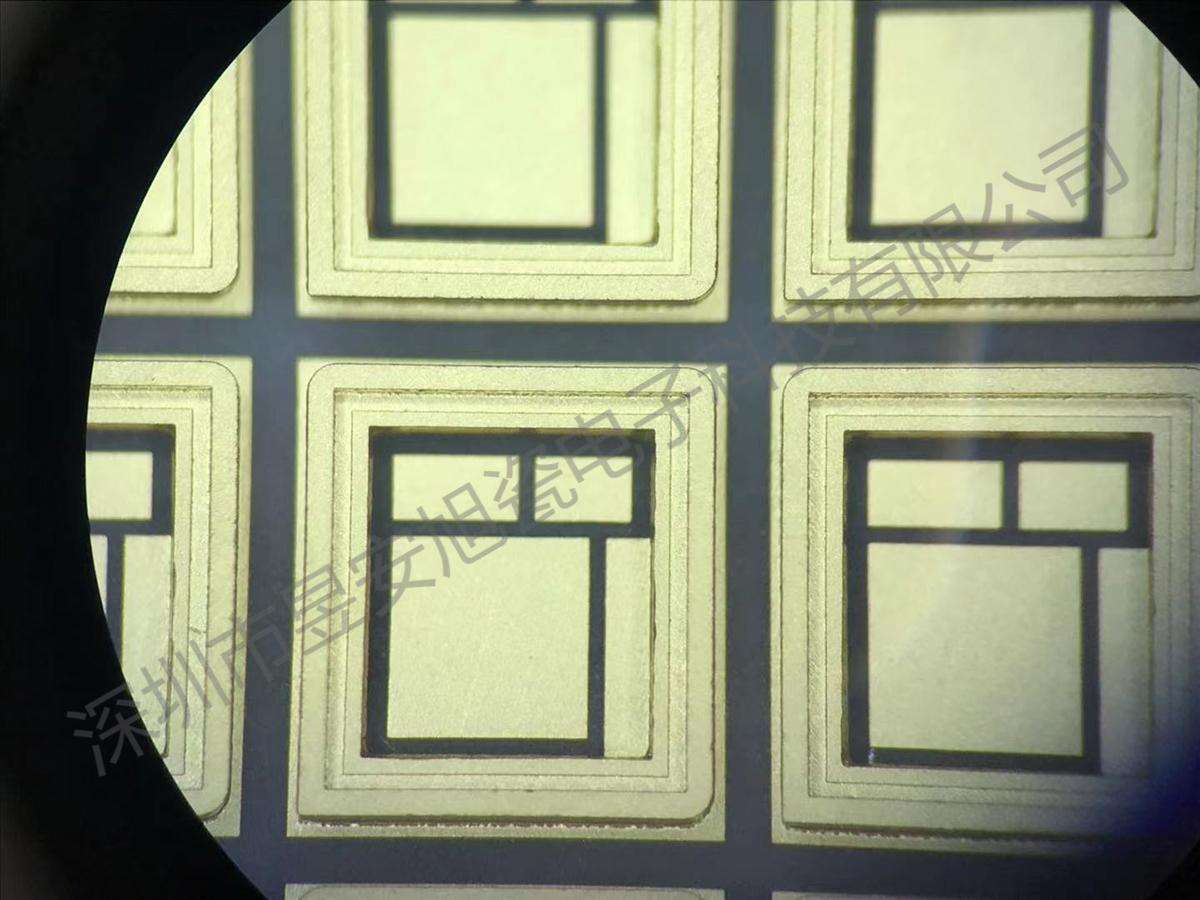

3532 dam slotted bracket
